induction cooker ceramic glass

FOB Reference Price:Get Latest Price
US $50-100 / Square Meters | 1 Square Meter/Square Meters (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
lepond
Model Number:
lp010
Function:
Acid Etched Glass, Heat Absorbing Glass, Heat Reflective Glass
Shape:
Curve, Flat
Structure:
Solid
Technique:
Coated Glass, Stained Glass, Tempered Glass, Tinted Glass
Type:
Sheet Glass
color:
black white clear
thickness:
4mm
thermal stability:
500~700degree C
Application:
fireplace,furnace,cooktop,induction cooker
Supply Ability
Supply Ability:
1000 Square Meter/Square Meters per Month
Packaging & Delivery
Packaging Details
safety export wooden package
Port
guangzhou Port
Lead Time :
15~20days





induction cooker ceramic glass





Company Information



       Guangzhou Lepond Glass Co.,Ltd is a company specialized in deep-processing glass and glass wholesale of various glass products. It locates in one of the most active economical area in Guangzhou, Guangdong Province. Our company is a well-equipped one and owns a number of years' experienced high-quality staff who engaged in glass technology R&D. With the newly developed products at home and abroad, we aim to provide products and services of good quality products, to deliver punctually and to fully make our customers satisfied. Because of our abundant financial resources, good quality equipments, advanced technology and the ability of strong innovation, our products has passed 3C (China Compulsory Certification) national certification as well as ISO9001:2000 quality system certification.



        Since the date of being established, we adhere to the principle of "survive for good quality and develop for good reputation", also the spirit of enterprise of "material is limited while innovation is boundless". In order to meet the need of market expansion, we own not only complete management system but advanced technology and equipment.







Product Description

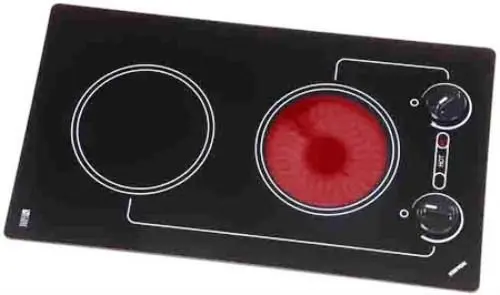

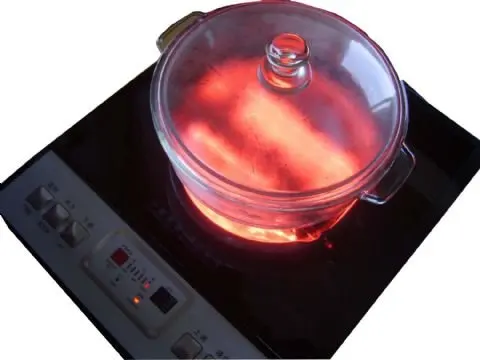

        (Ceramic Glass)Crystallite glass is made of a special glass-ceramic, a material with fascinating properties. This glass-ceramic has extraordinary thermal stability and resists thermal shocks of up to +700 degree C. It stands up to everyday wear and tear in the kitchen. The 4mm thick cooktop panel transmits heat very efficiently, with virtually no heat loss.



       Glass ceramic is resisting to heat and cold, even to extreme temperature changes.This extraordinary property enables a variety of applications: cooking on glass ceramic appliances day after day , and protecting your fire places or stoves, still enjoying flames view.Among the heat resistant glasses, glass ceramic is really special. Its key property, is low thermal expansion, lower than borosilicate glasses or standard glasses. It means that, unlike most materials, the crystallite glass ceramic will not expand nor contract with heat. It barely changes its dimensions. This is the reason behind efficient and long time resistant cooktops.it's colour have:black,white and clear.







Specification



Item

Ceramic glass

Thickness

4mm,5mm,6mm

Size

Customized size,with silk print

Color

Clear and black

Application



Clear ceramic glass for fireplace,furnace

Black ceramic glass for cooktop,induction cooker

Thermal stability

500~700degree C









Application



 ²          Vision panels for room heaters, glass heaters, glass heating tabletops, heat preservation board/panels;

²        Cover panels for heating radiators, drying stand, towel heaters;

²        Cover panels for reflectors and high performance floodlights

²        Cover panels in IR drying appliances

²        Cover panels for beamers

²        UV blocking shields

²        Cover panels for kebab grill radiators, electric heating fish bowl







Quality Assurance



1, Density---approx. 2.56 g / cm3

2, Modulus of Elasticity--- approx. 93 x 103 Mpa

3, Bending Strength--- approx. 36 MPa

The bending strength testing is to be accomplished according to DIN EN 1288 part 5 (R45).

4. Thermal Characteristics

Coefficient of Mean Linear Expansion---α(20 - 700oC)     (0 ± 0.5) x 10-7 /K

5. Resistance to Temperature Differences (RTD)

Resistance of the panel to temperature differences between heated zone and cold panel edge (room temperature). No cracking due to thermal stress at Tes, max1<=700 degree C

6. Thermal Shock Resistance

Resistance of the panel to thermal shock when the hot panel (780 degree C) is quenched with cold water (20oC temperature). No cracking due to thermal stress at Tes, max<=700 degree C

7. Chemical Characteristics of Base Material

Acid Resistance--- DIN 12116: at least class S3

Alkaline Resistance---based on ISO 695: at least class A2

8. Screen printing: complies with RoHS standards, normal ink available

9. Impact resistance: A steel ball (diameter 60mm, weight 188g) freefall from180mm height, striking the panel 10 times. No scratching or cracking.







Cleaning & Care hints



First, wipe down the glass-ceramic panel with a clean, damp cloth. Then rub the panel in a circular polishing motion using a soft cloth and a few drops of a conditioner suitable for use on glass-ceramic cooktop panels. Then rinse with a damp cloth and wipe dry with a clean, soft cloth. After rinsing and drying, the surface is coated with an invisible film which helps to keep the panel clean. Regularly repeating this conditioning process makes it considerably easier to keep the panel clean and shiny.



Advantage of Lepond



1. We manufacture a wide range of glass to meet your different demands: Plate glass, float glass, art glass, colored glass, colorful drawing or pattern glass, glass Mosaic, glass mirror, sculpture, work obscure glass, crystal glass, sandwich glass, toughened glass, hollow glass, reflective glass, solar energy, bulletproof glass, glass LED glass, hot bending glass, thermal glass, inspect wave glass, low radiation glass, bright color glass, laser glass, intelligent glass, breathing glass, glass, color vacuum glass Mosaic, etc



2. Have biggest tempered production lines to make sure on time delivery.



3. Lepond Glass can ensure you receive exactly high quality glass, and the most competitive price.



4. All the products are according to ISO9001:2000 and CE certificate to make sure perfect quality.



5. We give each customer personalized, professional, and dedicated service.



6. From order to delivery to after sales service, our devoted, experienced team is always available to give prompt reply and service.















Certifications







Packaging & Shipping

wooden package,safety package as to customers' requirement
