Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Lepond
  • Model Number: lp201215
  • feature: electical conductivity
  • thickness: 1.1mm-2mm
  • surface resistance: 8-100 Ohm/sq
  • opical transmittance: over 85%
  • Size: 100*100mm.or 14"*16"
  • Color: clear

Packaging & Delivery

Packaging Details safe export wooden case

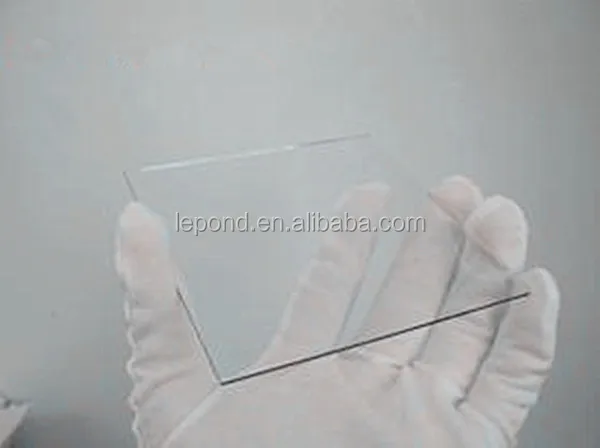

10~15 ohm  ITO coating conductive glass on touch panel

Product Description



Introduction



ITO glass,ITO conductor glass:



ITO conductive glass is based on the sodium-calcium or silicon-boron sheet glass, then using the magnetron sputtering method to coat with a layer of indium tin oxide films (commonly known as ITO). The main ingredient of the ITO film is indium tin oxide. In the case of only a few thousand angstroms thickness, the indium tin oxide has high light transmission and high conductive ability. The ITO used in the LCD display is a conductive glass with high transmittance.



It is widely used in TN , STN , HTN ,LCD monitor as well as touch panel ,with minimum resistance of 2 . conventional products 30 /500 as well as specific products 2 /30 etc. both of them are produced under strict and durable quality criteria with a monthly capacity of 36,0000  sheet .















1.How-how to ITO plating



ITO plating glass is made from extra thin float glass after it goes through slicing ,filing polishing and cleaning .Under the circumstances of vacuum and extreme heat , through magnetron shedding splashing , a plate of transparent Indium tin oxide is precipitated on glass surface which is used as conductive board of LCD



2. ITO conductive glass specifications



         glass substrate microscopic corrugation



Thickness /mm



Glass substrate microscopic corrugation



Polishing float glass

extreme smooth float glass

ordinary float glass

1.10

£0. 05µm / 20mm

£0. 10µm / 20mm

£0. 15µm / 20mm

0.70

£0. 08µm / 20mm

£0. 13µm / 20mm

£0. 20µm / 20mm

0.55

£0 .10µm / 20mm

£0. 18µm / 20mm

£0. 25µm / 20mm

0.50

£0 .10µm / 20mm

£0. 18µm / 20mm

£0. 25µm / 20mm

0.40

£0. 20µm / 20mm

£0.25µm / 20mm

£0. 30µm / 20mm



                  Ito conductive plating specification



Specifications

 side resistance (W/)

 transmissibility (%)

etching time /s



thickness of plating

150

150

87.0

30

200ű50Å

125

125

87.0

35

200ű50Å

100

100

87.0

40

230ű50Å

80

80

86.0

45

300ű50Å

60

60

85.0

60

350ű50Å

50

50

84.0

65

400ű50Å

40

40

82.0

70

500ű100Å

30

30

80.0

100

650ű100Å

20

20

80.0

140

950ű100Å

15

15

85.0

180

1350ű150Å

10

10

82.0

240

1850ű200Å



                                  250Å  thickness of Sio2



3.  ITO plating series



 specifications of glass

14×16/ 14×14

300×300mm   /   300×350mm

300×360mm   /   370×470mm

100*100mm

other specifications can be adjusted based on customers needs

thickness of glass

0.3mm-5 mm



4. scopes of usage



1. Various conductive glass used in TN,STN  in the line of LCD .
2.ITO glass ,high side resistance (200-500) used in the line touch panel
3. Other vacuum plating products



Using: Liquid -crystal display  (LCD) ,touch panel(TP ),electro luminescence display   (ELD ),solar energy battery , car rear-view mirror , glass screens of MP3 and cell phones and other transparent conductive plating .etc.afely export wooden packing









Our Services

1.Our factory is a professional manufacturer of gift and rich experience and technology.

2.Complete Hardware facilities.

3.Diversification of product range.

4.we are OEM, price should be cheap.

5.High quality with the best services.

Should you are interested in our products ,or any questions about the mirror ,pls kindly let me know .

You can call :  0086-20-37036163/65-610 or contact me by skype:lawlepond .Tks!

FAQ

1.Q:Are you factory in China?

  A:Yes,we are.

2.Q:What is your MOQ?

 A:200 m² for the first order,then one 20 GP container at least.

3.Q:How to get a quotation?

 A:We need some information,such as size,color ,thickness,quantity,edge, etc.

4.Q:What is your delivery time?

 A:2~4 weeks after receiving the deposit.



Welcome to inquire our products-glass.

Please tell me your requirements about the tempered  glass, such as Size, thickness,

and how many pieces you need.

Once received your inquiry, we will provide you with our quotation as soon as possible.

payment and delivery



Payment Terms:T/T,Westem Union,MoneyGram,Cash

 About sample:

delivery time:sample for 7~10 working days and order for 20~30 working days









company information

     Guangzhou Lepond Glass Co.,Ltd is a company specialized in deep-processing glass and glass wholesale of various glass products. It locates in one of the most active economical area in Guangzhou, Guangdong Province. Our company is a well-equipped one and owns a number of years' experienced high-quality staff who engaged in glass technology R&D. With the newly developed products at home and abroad, we aim to provide products and services of good quality products, to deliver punctually and to fully make our customers satisfied. Because of our abundant financial resources, good quality equipments, advanced technology and the ability of strong innovation, our products has passed 3C (China Compulsory Certification) national certification as well as ISO9001:2000 quality system certification.



Welcome to see our products ! If you have any interested in products ,please don't hesitate to contact us !

Skype id : lawlepond

Wechat id : lepondglass

Welcome to visit us!
