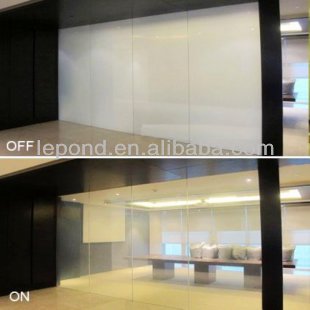

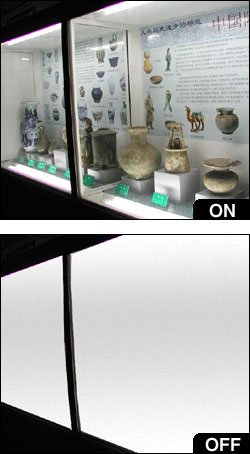

Introduction: Smart glass is made with special technology by using decentralize micro-droplets polymerize substance to scatter light valve thin time and clear glass. It uses the on-off feature of liquid crystal material to achieve a switch between clear and opaque glasses, when power on it is clear, when power off is opaque.
Feature: 1. Security The using laminated film can tighly stick to the glass, even when it is struck and broken for the outer force, the glass frament will adhere firmly to the PVB film, thus to avoid the possibility of getting hurt... 2. Sound insulation Middle laminated glass membrane have the sound insulation feature, which can effectively block out all kinds of noise. 3. Environmental protection It can assist the air condition to economize energy and obstruct ultraviolet radiation. 4. It allows enough light even when opaque, tenders bright indoors.
Application: Building windows, doors and skylights; Automobile, boat and windows; Appliance windows, screens and cell phone screens.
Technical Specification: Size: Maximum size of Single panel glass: W1200mm*H3500mm Glass: Clear float glass Thickness: 4mm, 5mm, 6mm, 8mm, 10mm. Film thickness: 0.38mm/0.76mm/1.14mm
Power Performance: Operating voltage: AC60-75VFrequency: 50Hz ~ 60Hz Amperage: In AC110V, 100mA/sqmElectric Consumption: In A C110V, 5W/sqmswitching speed: Less than one second(from the opaque totransparent: 100ms; From transparent to opaque: 400ms)
Optical performance: Operation mode: NO (transparent), OFF (opaque) Visible light transmittance: Power on 75%, power off 10% Light transmittance: ON 80%, OFF 60% Haze coefficient: ON 3%, OFF 82% UV Blocking: More than 98% Visible angle: 130 degrees. Working environment: - minus 20 to 65 Celsius degree
Working life: More than 10 years Quality assurance: One year
Package: Export wooden package.
Our Glass approved to Chinese Standard CCC&Europe Standard EC 12150
· In accordance with GB 15763.2-2005 Tempered Glass Standard
· In accordance with BS 6206 British Standard
· Chinese Safety Glass Compulsory Certification (CCC)
Packaging & Shipping
wooden package,safety package as to customers' requirement.
