Quick Details

  • Place of Origin: Guangdong, China (Mainland), Henan, China (Mainland)
  • Brand Name: lepond, ito glass
  • Model Number: 0.55~1.1mm, 14"*16"
  • Size: 14"*16"
  • Type: Tempered Glass
  • Application: Display Case Glass
  • Thickness: 0.55~1.1mm
  • Composition: Optical Glass
  • Features: Conductive

Packaging & Delivery

Packaging Details export wooden packing

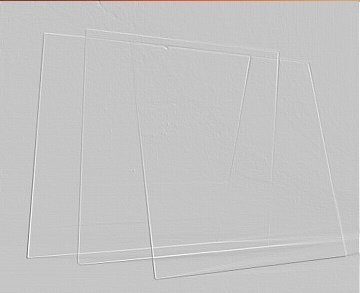

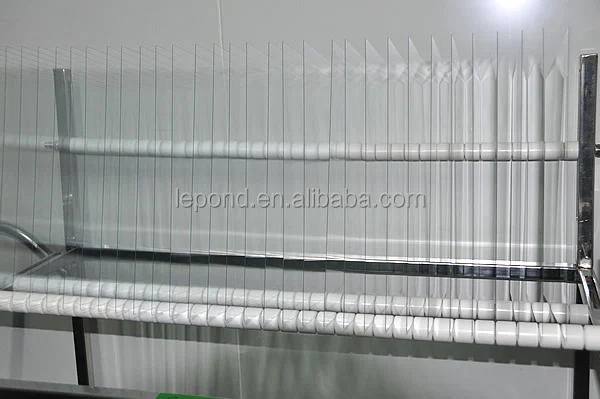

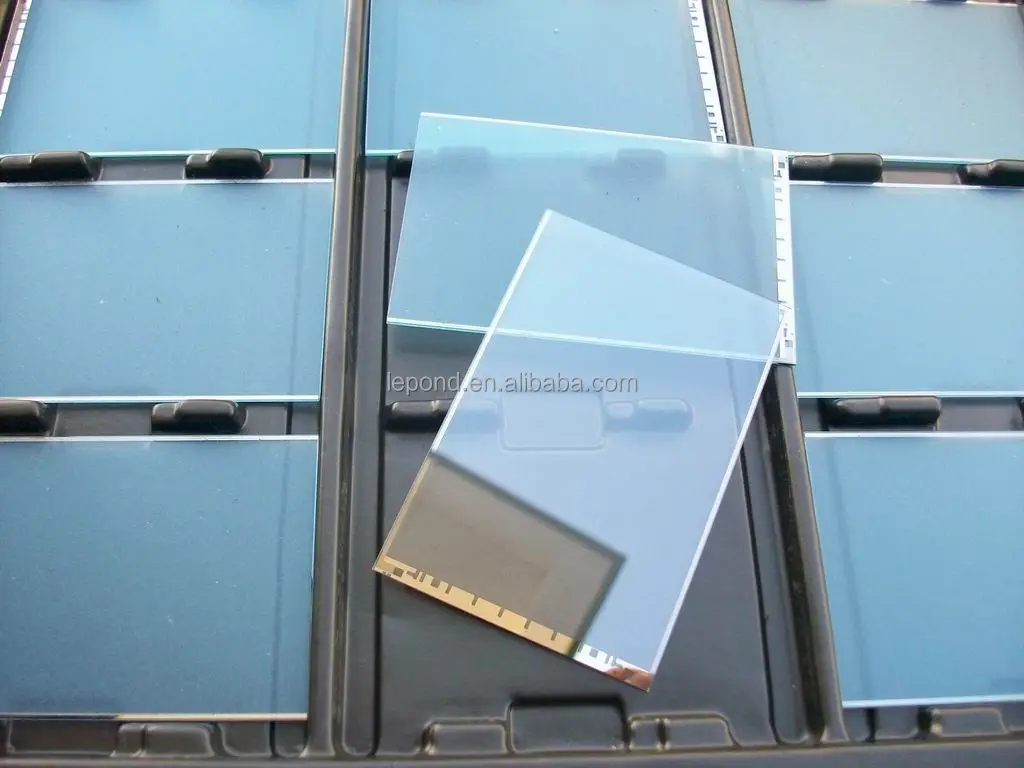

ITO glass / transparent conductive oxide coating glass





Product Description









ITO conductive glass is based on the sodium-calcium or silicon-boron sheet glass, then using the magnetron sputtering method to coat with a layer of indium tin oxide films (commonly known as ITO). The main ingredient of the ITO film is indium tin oxide. In the case of only a few thousand angstroms thickness, the indium tin oxide has high light transmission and high conductive ability. The ITO used in the LCD display is a conductive glass with high transmittance.



It is widely used in TN , STN , HTN ,LCD monitor as well as touch panel ,with minimum resistance of 2 . conventional products 30 /500 as well as specific products 2 /30 etc. both of them are produced under strict and durable quality criteria with a monthly capacity of 36,0000  sheet .



1.How-how to ITO plating

ITO plating glass is made from extra thin float glass after it goes through slicing ,filing polishing and cleaning .Under the circumstances of vacuum and extreme heat , through magnetron shedding splashing , a plate of transparent Indium tin oxide is precipitated on glass surface which is used as conductive board of LCD





2. ITO conductive glass specifications

         glass substrate microscopic corrugation

Thickness /mm



Glass substrate microscopic corrugation



Polishing float glass

extreme smooth float glass

ordinary float glass

1.10

£0. 05µm / 20mm

£0. 10µm / 20mm

£0. 15µm / 20mm

0.70

£0. 08µm / 20mm

£0. 13µm / 20mm

£0. 20µm / 20mm

0.55

£0 .10µm / 20mm

£0. 18µm / 20mm

£0. 25µm / 20mm

0.50

£0 .10µm / 20mm

£0. 18µm / 20mm

£0. 25µm / 20mm

0.40

£0. 20µm / 20mm

£0.25µm / 20mm

£0. 30µm / 20mm



                  Ito conductive plating specification

Specifications

 side resistance (W/)

 transmissibility (%)

etching time /s



thickness of plating

150

150

87.0

30

200ű50Å

125

125

87.0

35

200ű50Å

100

100

87.0

40

230ű50Å

80

80

86.0

45

300ű50Å

60

60

85.0

60

350ű50Å

50

50

84.0

65

400ű50Å

40

40

82.0

70

500ű100Å

30

30

80.0

100

650ű100Å

20

20

80.0

140

950ű100Å

15

15

85.0

180

1350ű150Å

10

10

82.0

240

1850ű200Å



                                  250Å  thickness of Sio2

3.  ITO plating series

    specifications of glass

14×16/ 14×14

300×300mm   /   300×350mm

300×360mm   /   370×470mm

other specifications can be adjusted based on customers needs

thickness of glass

0.4mm5 mm



4. scopes of usage

1. Various conductive glass used in TN,STN  in the line of LCD .
2.ITO glass ,high side resistance (200-500) used in the line touch panel
3. Other vacuum plating products

Using: Liquid -crystal display  (LCD) ,touch panel(TP ),electro luminescence display   (ELD ),solar energy battery , car rear-view mirror , glass screens of MP3 and cell phones and other transparent conductive plating .etc.

Safely export wooden pack



Company Information





Our Services



1. We can produce the glass according to your requirement .

2. We will give each customer personalized, professional, and dedicated service.

3. No matter the requirement, at Lepnd Glass we are always at your service.



FAQ



1.Payment term:T/T

2.Delivery time:15~20days.
