Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: lepond
  • Model Number: LP-002
  • Function: Acid Etched Glass, Bulletproof Glass, Decorative Glass, Heat Absorbing Glass, Heat Reflective Glass, Insulated Glass, Low-E Glass
  • Shape: Flat
  • Structure: Solid
  • Technique: Clear Glass, Coated Glass, Figured Glass, Frosted Glass, Laminated Glass, Stained Glass, Tempered Glass, Tinted Glass, Wired Glass
  • Type: Float Glass
  • feature: colors can change
  • size: customize
  • switch on color: transparent
  • switch off color: opaque
  • Working environment: minus 20°C to 65°C
  • max size: 1.2X3 M
  • sample size: 200X200 mm
  • voltage: 110 V,220V
  • Light transmittance: ON 80% , OFF 60%
  • types: Self adhesive and non self adhesive

Packaging & Delivery

Packaging Details electric control smart glass /power glass: 1. Glass: plywood box. 2. Other components: covered by bubble firm bag, packing in carton. All we packed with safety wooden crates.
Delivery Time Shipped in 20 days after payment

electric control smart glass /power glass



Introduction:

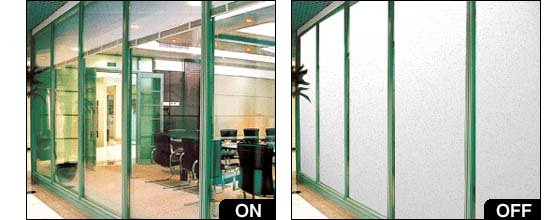

Smart glass is made with special technology by using decentralize micro-droplets polymerize substance to scatter light valve thin time and clear glass. It uses the on-off feature of liquid crystal material to achieve a switch between clear and opaque glasses, when power on it is clear, when power off is opaque.



Feature:


1. Security


The using laminated film can tightly stick to the glass, even when it is struck and broken for the outer force, the glass frame



 will adhere firmly to the PVB film, thus to avoid the possibility of getting hurt.


2. Sound insulation


Middle laminated glass membrane have the sound insulation feature, which can effectively block out all kinds of noise.


3. Environmental protection


It can assist the air condition to economize energy and obstruct ultraviolet radiation.


4. It allows enough light even when opaque, tenders bright indoors.



Application:


Building windows, doors and skylights; Automobile, boat and windows; Appliance windows, screens and cell phone screens.



Technical Specification:


Max Size : W1200mm*H3000mm


Glass: Clear float glass ,tempered glass ,hollow glass


Thickness: 4mm, 5mm, 6mm, 8mm, 10mm.



 Power Performance:


Operating voltage: AC60-75VFrequency: 50Hz ~ 60Hz


Amperage: In AC110V, 100mA/sqmElectric


Consumption: In A C110V, 5W/sqmswitching speed: Less than one second(from the opaque totransparent: 100ms; From



transparent to opaque: 400ms)



 Optical performance:


Operation mode: NO (transparent), OFF (opaque)


Visible light transmittance: Power on 75%, power off 10%


Light transmittance: ON 80%, OFF 60%


Haze coefficient: ON 3%, OFF 82%


UV Blocking: More than 98%


Visible angle: 130 degrees.


Working environment: - minus 20 to 65 Celsius degree



Working life: More than 10 years


Quality assurance: One year



 Package:


Export wooden package.



product smart glass / electrochromic glass

feature

ON (transparent), OFF (opaque)

Max size

1200*3000mm,size can cut in any shapes

types

Self –adhesive and non self adhesive

Working environment

- minus 20°C to 65°C

Working life

more than 10 years

Light transmittance



ON 80% , OFF 60%























Company Information

LEPOND GLASS Competitive Advantages:
1. 20 years experiences on glass manufacturing and exporting.
2. Top quality glass with CE certificate, exporting to more 90 countries in the world.
3. Unique designed strong wooden cases, solving the problems of breakage.
4. Dockside warehouses beside three of China main container seaports, ensuring convenient

    loading and rapid delivery.
5. Full range of flat glass supply, offering one-stop purchase.
6. Professional sales team, offering personalized and dedicated services.



Our Services

Our Glass approved to Chinese Standard CCC&Europe Standard EC 12150

Quality Standard:

· In accordance with GB 15763.2-2005 Tempered Glass Standard

· In accordance with BS 6206 British Standard

· Chinese Safety Glass Compulsory Certification (CCC)



FAQ

1.Payment term:T/T

2.Delivery time:15~20days.



Packaging & Shipping

wooden package,safety package as to customers' requirement.
