Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: lepond
  • Model Number: LP-002
  • Function: Acid Etched Glass, Bulletproof Glass, Decorative Glass, Heat Absorbing Glass, Heat Reflective Glass, Insulated Glass, Low-E Glass
  • Shape: Flat
  • Structure: Solid
  • Technique: Clear Glass, Coated Glass, Figured Glass, Frosted Glass, Laminated Glass, Stained Glass, Tempered Glass, Tinted Glass, Wired Glass
  • Type: smart glass
  • feature: colors can change
  • size: customize
  • switch on color: transparent
  • switch off color: opaque
  • Working environment: minus 20°C to 65°C
  • max size: 1.2X3 M
  • sample size: 200X200 mm
  • voltage: 110 V,220V
  • Light transmittance: ON 80% , OFF 60%
  • types: Self adhesive and non self adhesive

Packaging & Delivery

Packaging Details high quality electrochromic glass /smart glass: 1. Glass: plywood box. 2. Other components: covered by bubble firm bag, packing in carton. All we packed with safety wooden crates.
Delivery Time Shipped in 20 days after payment

high quality electrochromic glass /smart glass

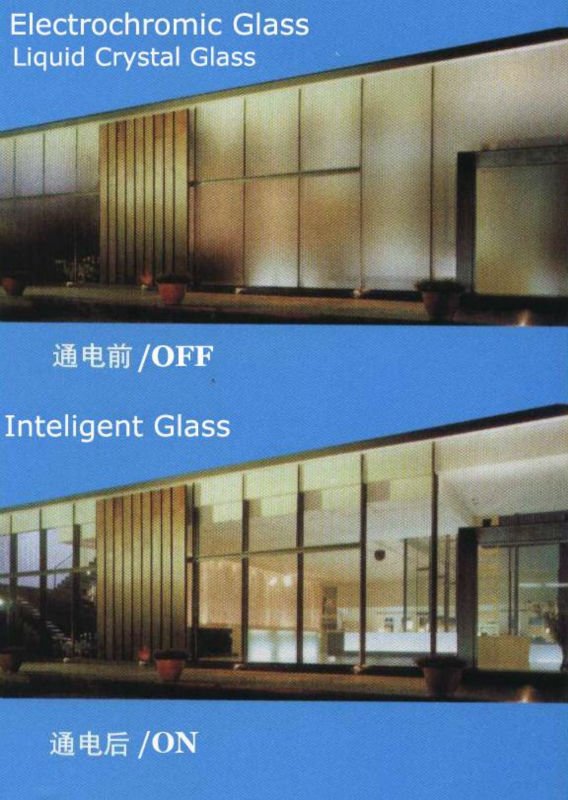

Smart glass is made with special technology by using decentralize micro-droplets polymerize substance to scatter light valve


thin time and clear glass. It uses the on-off feature of liquid crystal material to achieve a switch between clear and opaque


glasses, when power on it is clear, when power off is opaque.



1. Security

The using laminated film can tightly stick to the glass, even when it is struck and broken for the outer force, the glass frame


 will adhere firmly to the PVB film, thus to avoid the possibility of getting hurt.

2. Sound insulation

Middle laminated glass membrane have the sound insulation feature, which can effectively block out all kinds of noise.

3. Environmental protection

It can assist the air condition to economize energy and obstruct ultraviolet radiation.

4. It allows enough light even when opaque, tenders bright indoors.



Building windows, doors and skylights; Automobile, boat and windows; Appliance windows, screens and cell phone screens.


Technical Specification:

Max Size : W1200mm*H3000mm

Glass: Clear float glass ,tempered glass ,hollow glass

Thickness: 4mm, 5mm, 6mm, 8mm, 10mm.


 Power Performance:

Operating voltage: AC60-75VFrequency: 50Hz ~ 60Hz

Amperage: In AC110V, 100mA/sqmElectric

Consumption: In A C110V, 5W/sqmswitching speed: Less than one second(from the opaque totransparent: 100ms; From


transparent to opaque: 400ms)


 Optical performance:

Operation mode: NO (transparent), OFF (opaque)

Visible light transmittance: Power on 75%, power off 10%

Light transmittance: ON 80%, OFF 60%

Haze coefficient: ON 3%, OFF 82%

UV Blocking: More than 98%

Visible angle: 130 degrees.

Working environment: - minus 20 to 65 Celsius degree


Working life: More than 10 years

Quality assurance: One year



Export wooden package.


product smart glass / electrochromic glass


ON (transparent), OFF (opaque)

Max size

1200*3000mm,size can cut in any shapes


Self –adhesive and non self adhesive

Working environment

- minus 20°C to 65°C

Working life

more than 10 years

Light transmittance


ON 80% , OFF 60%
